Musgravite (Magnesiotaaffeite-6Ní3S)
Current inventory:  1 gem


Musgravite


Musgravite is named for the Musgrave Ranges, South Australia, where it was first recognized.

Discovered in 1967;   IMA status:  Valid (IMA approved 2002)



Chemistry





Chemical Formula:

(Mg,Fe2+,Zn)2Al6BeO12



Magnesium Iron Zinc Aluminum Beryllium Oxide

Molecular Weight:

426.60 gm

Composition:

Magnesium

9.69 %

Mg

16.06 %

MgO



Beryllium

1.90 %

Be

5.28 %

BeO



Aluminum

37.95 %

Al

71.70 %

Al2O3



Zinc

1.53 %

Zn

1.91 %

ZnO



Iron

3.93 %

Fe

5.05 %

FeO



Oxygen

45.00 %

O









100.00 %



100.00 %

= TOTAL OXIDE





Classification





Mineral Classification:

Oxides

Strunz 8th Ed. ID:

4/B.07-30

Nickel-Strunz 10th Ed. ID:

4.FC.25



4 : OXIDES (Hydroxides, V[5,6] vanadates, arsenites, antimonites, bismuthites, sulfites, selenites, tellurites, iodates)
F : Hydroxides (without V or U)
C : Hydroxides with OH, without H
2O; corner-sharing octahedra

Related to:

Taaffeite Group. Chrysoberyl - Swedenburgite Series. 9R, 18R polytypoids.

Members of Group:

Taaffeite Group: Ferrotaaffeite-6N'3S (Pehrmanite), Magnesiotaaffeite-2Ní2S (Taaffeite), Magnesiotaaffeite-6Ní3S (Musgravite)

Varieties:

None

Synonyms:

Magnesiotaaffeite-6N3S, Musgravite





Crystal Data





Crystallography:

Trigonal - Hexagonal Scalenohedral

Crystal Habit:

Crystals platy on {0001}, to 0.5 mm; massive.

Twinning:

None





Physical Properties





Cleavage:

Perfect on {0001} (or a Parting); less Perfect on {1011}

Fracture:

Platy

Tenacity:

Brittle

Moh's Hardness:

8.0 - 8.5

Density:

3.68 (g/cm3)

Luminescence:

None

Radioactivity:

Not Radioactive





Optical Properties





Color:

Light Olive Green, dark Greenish Blue, light to dark Violet; nearly Colorless in thin section

Transparency:

Transparent to Translucent

Luster:

Vitreous

Refractive Index:

1.719 - 1.739  Uniaxial ( - )

Birefringence:

0.0070

Dispersion:

n/a

Pleochroism:

None





Occurances





Geological Setting:

In a nodule, perhaps formerly a corundum crystal, in high-grade metapyroxenite, associated with metaperidotites and granulites (Musgrave Ranges, Australia); in pegmatite cutting granulite (Enderby Land, Antarctica).

Common Associations:

Phlogopite, Sapphirine, Spinel (Musgrave Ranges, Australia); Biotite, Garnet, Quartz, Sapphirine, Sillimanite, Surinamite (Enderby Land, Antarctica).

Common Impurities:

None

Type Locality:

Ernabella Mission, Musgrave Ranges, South Australia, Australia

Year Discovered:

1967, (IMA approved 2002)

View mineral photos:

Musgravite Mineral Photos and Locations





More Information







Mindat.org
Webmineral.com






Musgravite is one of the rarest of all gem species. Tested and certified faceted Musgravites are exceptionally rare. Musgravite is closely related to
Taaffeite and the separation between the two is based on magnesium content. It is very difficult to distinguish Musgravite from Taaffeite. Their physical and optical properties are almost identical and the only sure way of determining one from the other is by Raman Spectroscopy. Musgravite and Taaffeite are two of the hardest of the extremely rare gem species with a hardness of 8.0 - 8.5 on the Moh's scale.

Musgravite was recently renamed by the IMA (International Mineralogical Association) and is now officially known as Magnesiotaaffeite-6Ní3S. Musgravite was originally named after the Musgrave Ranges of Southern Australia where it was first discovered but has been renamed Magnesiotaaffeite-6Ní3S by the IMA for its association with Taaffeite and its magnesium content. Musgravite was renamed as a method of clarifying the complexity of the compositions of Taaffeite Group minerals including Musgravite, Perhmanite and Taaffeite and the influences of the minerals Spinel and Nolanite on them.

So, according to the new nomenclature accepted by the IMA, Musgravite has become Magnesiotaaffeite-6Ní3S, as it is composed of six modified Nolanite modules (6N) and three Spinel modules (3S). Correspondingly, Taaffeite has become Magnesiotaaffeite-2Ní2S and Perhmanite has become Ferrotaaffeite-6Ní3S. Taaffeite is now an IMA approved name for the group of minerals containing Musgravite (Magnesiotaaffeite-6Ní3S), Perhmanite (Ferrotaaffeite-6Ní3S) and Taaffeite (Magnesiotaaffeite-2Ní2S). The names Musgravite and Taaffeite have been relegated to trade name status. However, I suspect that these names will continue to be used in the gem trade as the individual gem names.

Musgravite has been found at the Type Locality 16 km north-northeast of Ernabella Mission, Musgrave Ranges, South Australia; along Casey Bay, Enderby Land, Antarctica and at Dove Bugt, northeast Greenland. The only sources of facetable crystals are at Tunduru, Tanzania and a very limited find in 2009 at Mogok, Burma.



Musgravite gems for sale:

Musgravite-001

Gem:

Musgravite

Stock #:

MUSG-001

Weight:

0.1120 ct

Size:

4.32 x 2.37 x 1.50

Shape:

Pear

Color:

Colorless

Clarity:

Eye clean

Origin:

Mogok, Burma

Treatment:

None

Price:

$1,200.00    [ Make an offer ]

Pictures are of the actual gem offered for sale.
Gem images are magnified to show detail.

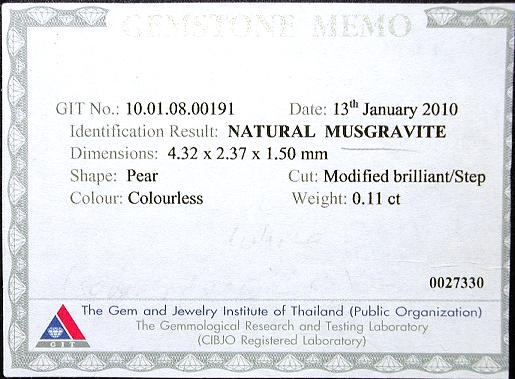

Musgravite Certificate

An exceptionally rare gem that is well faceted and of a relatively affordable size. This gem includes the pictured certification from the Gem and Jewelry Institure of Thailand (GIT).
